Configuring OpenShift Logging 6 on ROSA HCP

Last edited: May 9, 2025
Published: May 7, 2025
Authors: Kumudu Herath,; Kevin Collins

Tags:

This content is authored by Red Hat experts, but has not yet been tested on every supported configuration.

ROSA HCP clusters now only support openshift Logging 6.x and above. This guide aims to provide a step-by-step guide for implementing logging 6.x on ROSA HCP,setting up a log store with Loki with S3 and/or log forwarding to AWS CloudWatch.

For ROSA Classic refer to the LokiStack on ROSA article.

Components of the Logging Subsystem

The OpenShift logging subsystem is designed to collect, store, and visualize logs from various sources within the cluster, including node system logs, application container logs, and infrastructure logs. The OpenShift logging subsystem comprises several key components that work together to achieve log aggregation and management. The collector, residing on each node in the OpenShift cluster, is responsible for gathering logs. The primary implementation for the collector has historically been FluentD. However, a newer alternative, Vector, is increasingly being adopted for its performance and features. The collector gathers system logs from journald and container logs from /var/log/containers/*.log. Additionally, it can be configured to collect audit logs from /var/log/audit/audit.log. The collector is deployed and managed as a DaemonSet, ensuring that a collector pod runs on every node within the OpenShift cluster. The aggregated logs are then stored in a log store. The default log store for OpenShift Logging has traditionally been Elasticsearch. However, Loki is now offered as a performant alternative, particularly in ROSA HCP environments now defaults to Loki Operator. The ROSA HCP cluster log visualization component is provided using Cluster Observability Operator’s (COO) Logging UI Plugin.

Refer to openshift logging official documentation and 6.x quick guide for more details.

For ROSA HCP with logging 6 now required following operators

Loki Operator (log store)
Red Hat OpenShift Logging Operator
Cluster Observability Operator (log visualizing)

Prerequisites

ROSA HCP Cluster logged in with cluster-admin permissions
OpenShift CLI (oc)
Access AWS resources i.e. IAM, S3 and Cloudwatch

Note: The OpenShift Logging stack requires quite a bit of resources, you will need at least 32 vCPUs in your cluster.

Create environment variables

Create environment variables :

export REGION=$(oc get infrastructure cluster -o=jsonpath="{.status.platformStatus.aws.region}")
export OIDC_ENDPOINT=$(oc get authentication.config.openshift.io cluster \
-o jsonpath='{.spec.serviceAccountIssuer}' | sed  's|^https://||')
export AWS_ACCOUNT_ID=$(aws sts get-caller-identity --query Account --output text)
export AWS_PAGER=""
export CLUSTER_NAME=$(oc get infrastructure cluster -o=jsonpath="{.status.apiServerURL}" | awk -F '.' '{print $2}')
export LOKISTACK_BUCKET_NAME=${CLUSTER_NAME}-lokistack-storage
export LOGGROUP_PREFIX=logging-${CLUSTER_NAME}
echo REGION:$REGION OIDC_ENDPOINT:$OIDC_ENDPOINT AWS_ACCOUNT_ID:$AWS_ACCOUNT_ID CLUSTER_NAME:$CLUSTER_NAME LOKISTACK_BUCKET_NAME:$LOKISTACK_BUCKET_NAME LOGGROUP_PREFIX: $LOGGROUP_PREFIX

Install the Loki Operator

Create a S3 bucket for the LokiStack Operator

aws s3 mb --region ${REGION} s3://${LOKISTACK_BUCKET_NAME}

Create a S3 IAM policy document for the Loki operator

cat << EOF > s3_policy.json
{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "LokiStorage",
            "Effect": "Allow",
            "Action": [
                "s3:ListBucket",
                "s3:PutObject",
                "s3:GetObject",
                "s3:DeleteObject"
            ],
            "Resource": [
                "arn:aws:s3:::${LOKISTACK_BUCKET_NAME}",
                "arn:aws:s3:::${LOKISTACK_BUCKET_NAME}/*"
            ]
        }
    ]
}
EOF

Create a S3 IAM Policy for Loki stack access

POLICY_ARN_S3=$(aws --region "$REGION" --query Policy.Arn \
--output text iam create-policy \
--policy-name "${CLUSTER_NAME}-lokistack-access-policy" \
--policy-document file://s3_policy.json)

echo $POLICY_ARN_S3

Create an IAM Role trust policy

cat <<EOF > s3-trust-policy.json
{
   "Version": "2012-10-17",
   "Statement": [
   {
   "Effect": "Allow",
   "Condition": {
     "StringEquals" : {
       "${OIDC_ENDPOINT}:sub": [
                        "system:serviceaccount:openshift-logging:logging-collector",
                        "system:serviceaccount:openshift-logging:logging-loki"
                    ]
      }
    },
    "Principal": {
     "Federated": "arn:aws:iam::${AWS_ACCOUNT_ID}:oidc-provider/${OIDC_ENDPOINT}"
    },
    "Action": "sts:AssumeRoleWithWebIdentity"
    }
    ]
}
EOF

Note: logging-collector = The name of the OpenShift service account used by log collector

Create an IAM Role and link the trust policy

ROLE_ARN_S3=$(aws iam create-role --role-name "${CLUSTER_NAME}-lokistack-access-role" \
--assume-role-policy-document file://s3-trust-policy.json \
--query Role.Arn --output text)
echo $ROLE_ARN_S3

Note: Save this role_arn for installation of the lokistack operator later.

Attach S3 IAM Policy for Loki stack access to the above role

aws iam attach-role-policy \
--role-name "${CLUSTER_NAME}-lokistack-access-role" \
--policy-arn $POLICY_ARN_S3

OpenShift project for Loki operator

Note: ROSA HCP cluster has a built in openshift-operators-redhat project. Make sure it has the “openshift.io/cluster-monitoring: “true”” label.

oc label namespace openshift-operators-redhat openshift.io/cluster-monitoring="true"

If the openshift-operators-redhat project does not exist create it.

oc create -f - <<EOF
apiVersion: v1
kind: Namespace
metadata:
  name: openshift-operators-redhat
  labels:
    openshift.io/cluster-monitoring: "true"
EOF

Create an OperatorGroup

oc create -f - <<EOF
apiVersion: operators.coreos.com/v1
kind: OperatorGroup
metadata:
  name: loki-operator
  namespace: openshift-operators-redhat
spec:
  upgradeStrategy: Default
EOF

Create a Subscription for Loki Operator

oc create -f - <<EOF
apiVersion: operators.coreos.com/v1alpha1
kind: Subscription
metadata:
  name: loki-operator
  namespace: openshift-operators-redhat
spec:
  channel: stable-6.2
  installPlanApproval: Automatic
  name: loki-operator
  source: redhat-operators
  sourceNamespace: openshift-marketplace
EOF

Note: Make sure to validate the current stable channel version. e.g: 6.2

Verify Operator Installation

oc get csv -n openshift-operators-redhat

Note: This can take up to a minute

Example Output

NAME                     DISPLAY                     VERSION   REPLACES                 PHASE
loki-operator.v6.2.2     Loki Operator               6.2.2     loki-operator.v6.2.1     Succeeded

Label the openshift-logging namespace to deploy the LokiStack:

Note: ROSA HCP cluster has a built in openshift-logging project. Make sure it has the “openshift.io/cluster-monitoring: “true”” label. If not add label using following command

oc label namespace openshift-logging openshift.io/cluster-monitoring="true"

Create a secret with the above Role for Loki stack to access S3 bucket.

oc -n openshift-logging create secret generic "logging-loki-aws" \
--from-literal=bucketnames="${LOKISTACK_BUCKET_NAME}" \
--from-literal=region="${REGION}" \
--from-literal=audience="openshift" \
--from-literal=role_arn="${ROLE_ARN_S3}" \
--from-literal=endpoint="https://s3.${REGION}.amazonaws.com"

Note: Make sure endpoint has correct S3 region for your environment

Create a LokiStack Customer Resource

oc create -f - <<EOF
apiVersion: loki.grafana.com/v1
kind: LokiStack
metadata:
  name: logging-loki
  namespace: openshift-logging
spec:
  size: 1x.extra-small
  storage:
    schemas:
      - effectiveDate: '2023-10-15'
        version: v13
    secret:
      name: logging-loki-aws
      type: s3
      credentialMode: token
  storageClassName: gp3-csi
  tenants:
    mode: openshift-logging
EOF

Note: Specify the deployment size. Supported size options for production instances of Loki are 1x.extra-small, 1x.small, or 1x.medium. Additionally, 1x.pico is supported starting with logging 6.1. Loki deployment sizing

Verify LokiStack Installation

oc get pods -n openshift-logging

Note: If you see pods in Pending state, confirm that you have sufficient resources in the cluster to run a LokiStack. You could set your ROSA machine pool to auto scale or create new machine pool with following command

for i in $(rosa describe cluster -c ${CLUSTER_NAME} -o json | jq -r '.nodes.availability_zones[]'); do
rosa create machinepool -c ${CLUSTER_NAME} --name=loki-$i --replicas=2 --instance-type=m5.16xlarge --availability-zone $i
done

Install the OpenShift Cluster Logging Operator

Create an OperatorGroup object

oc create -f - <<EOF
apiVersion: operators.coreos.com/v1
kind: OperatorGroup
metadata:
  name: cluster-logging
  namespace: openshift-logging
spec:
  upgradeStrategy: Default
EOF

Create a Subscription object for Red Hat OpenShift Logging Operator

oc create -f - <<EOF
apiVersion: operators.coreos.com/v1alpha1
kind: Subscription
metadata:
  name: cluster-logging
  namespace: openshift-logging
spec:
  channel: stable-6.2
  installPlanApproval: Automatic
  name: cluster-logging
  source: redhat-operators
  sourceNamespace: openshift-marketplace
EOF

Note: Make sure to select latest stable channel e.g: 6.2

Verify the Operator installation, the PHASE should be Succeeded

oc get csv -n openshift-logging

Example Output

NAME                     DISPLAY                     VERSION   REPLACES                 PHASE
cluster-logging.v6.2.2   Red Hat OpenShift Logging   6.2.2     cluster-logging.v6.2.1   Succeeded
loki-operator.v6.2.2     Loki Operator               6.2.2     loki-operator.v6.2.1     Succeeded

Create a service account to be used by the log collector:

oc create sa logging-collector -n openshift-logging

Note: SA name should match service account name used in above s3 access trust policy. i.e: logging-collector

Grant necessary permissions to the service account so it’s able to collect and forward logs. In this example, the collector is provided permissions to collect logs from infrastructure, audit and application logs.

oc adm policy add-cluster-role-to-user logging-collector-logs-writer -z logging-collector -n openshift-logging
oc adm policy add-cluster-role-to-user collect-application-logs -z logging-collector -n openshift-logging
oc adm policy add-cluster-role-to-user collect-infrastructure-logs -z logging-collector -n openshift-logging
oc adm policy add-cluster-role-to-user collect-audit-logs -z logging-collector -n openshift-logging

Create a ClusterLogForwarder CR to store logs in S3

oc create -f - <<EOF
apiVersion: observability.openshift.io/v1
kind: ClusterLogForwarder
metadata:
  name: instance
  namespace: openshift-logging
spec:
  serviceAccount:
    name: logging-collector
  outputs:
  - name: lokistack-out
    type: lokiStack
    lokiStack:
      target:
        name: logging-loki
        namespace: openshift-logging
      authentication:
        token:
          from: serviceAccount
    tls:
      ca:
        key: service-ca.crt
        configMapName: openshift-service-ca.crt
  pipelines:
  - name: infra-app-logs
    inputRefs:
    - application
    - infrastructure
    - audit
    outputRefs:
    - lokistack-out
EOF

Confirm you can see collector pods called “instance” starting up using the following command. There should be one per node.

oc get pods -n openshift-logging | grep instance

Example output:

instance-6tk4f                                1/1     Running             0          8s
instance-dl2wt                                1/1     Running             0          9s
instance-ggfb9                                1/1     Running             0          8s
instance-qhtnj                                1/1     Running             0          8s
instance-zpnr5                                1/1     Running             0          9s

Wait until all instances show running

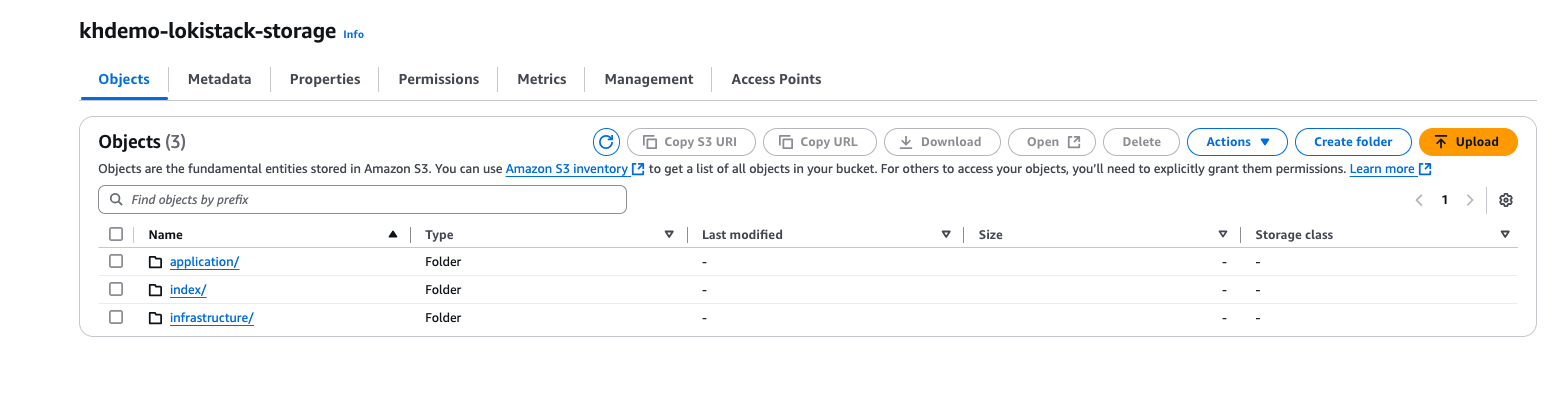

Verify your S3 bucket

Configuring log forwarding to cloudwatch

The ClusterLogForwarder (CLF) allows users to configure forwarding of logs to various destinations (i.e AWS cloudwatch) apart from ClusterLogging storage system (i.e: Loki stack)

Prerequisites

Created a serviceAccount in the same namespace as the ClusterLogForwarder CR (we’ll use same SA as Loki stack i.e logging-collector)
Assigned the collect-audit-logs, collect-application-logs and collect-infrastructure-logs cluster roles to the serviceAccount.
Create a CW IAM policy document for CLF

cat << EOF > cw-policy.json
{
"Version": "2012-10-17",
"Statement": [
   {
         "Effect": "Allow",
         "Action": [
            "logs:CreateLogGroup",
            "logs:CreateLogStream",
            "logs:DescribeLogGroups",
            "logs:DescribeLogStreams",
            "logs:PutLogEvents",
            "logs:PutRetentionPolicy"
         ],
         "Resource": "arn:aws:logs:${REGION}:${AWS_ACCOUNT_ID}:log-group:${LOGGROUP_PREFIX}*"
   }
]
}
EOF

Create the CW IAM Policy for CLF’s access

POLICY_ARN_CW=$(aws --region "$REGION" --query Policy.Arn \
--output text iam create-policy \
--policy-name "${CLUSTER_NAME}-CLF-CW-policy" \
--policy-document file://cw-policy.json)

echo $POLICY_ARN_CW

Create an IAM Role trust policy document

cat <<EOF > ./trust-cw-policy.json
{
   "Version": "2012-10-17",
   "Statement": [{
     "Effect": "Allow",
     "Principal": {
       "Federated": "arn:aws:iam::${AWS_ACCOUNT_ID}:oidc-provider/${OIDC_ENDPOINT}"
     },
     "Action": "sts:AssumeRoleWithWebIdentity",
     "Condition": {
       "StringEquals": {
         "${OIDC_ENDPOINT}:sub": "system:serviceaccount:openshift-logging:logging-collector"
       }
     }
   }]
}
EOF

Note: logging-collector - The name of the openshift service account used by log collector

Create an IAM Role and link the trust policy

ROLE_ARN_CW=$(aws iam create-role --role-name "${CLUSTER_NAME}-ROSACloudWatch" \
--assume-role-policy-document file://trust-cw-policy.json \
--query Role.Arn --output text)

echo ${ROLE_ARN_CW}

Note: Save this role_arn for installation of the cluster log forwarder (CLF) later.

Attach CW IAM Policy to the above role

aws iam attach-role-policy \
--role-name "${CLUSTER_NAME}-ROSACloudWatch" \
--policy-arn $POLICY_ARN_CW

Create a secret with above Role for CLF to access CW

oc -n openshift-logging create secret generic "cw-secret" \
--from-literal=role_arn="${ROLE_ARN_CW}"

Create a ClusterLogForwarder CR to forward logs to AWS cloudwatch

oc create -f - <<EOF
apiVersion: "observability.openshift.io/v1"
kind: ClusterLogForwarder
metadata:
  name: cloudwatch
  namespace: openshift-logging
spec:
  managementState: Managed
  outputs:
  - name: cloudwatch
    type: cloudwatch
    cloudwatch:
      authentication:
        iamRole:
          roleARN:
            key: role_arn
            secretName: cw-secret
          token:
            from: serviceAccount
        type: iamRole
      groupName: logging-${CLUSTER_NAME}.{.log_type||"none-typed-logs"}
      region: ${REGION}
      tuning:
        compression: zstd
        delivery: atMostOnce
        maxRetryDuration: 30
        maxWrite: 10M
        minRetryDuration: 5
  pipelines:
  - name: cloudwatch
    inputRefs:
    - application
    - infrastructure
    - audit
    outputRefs:
    - cloudwatch
  serviceAccount:
    name: logging-collector
EOF

Note: Make sure to format group name and set correct AWS region

This example selects all application, infrastructure and audit logs and forwards them to cloudwatch. Refer to openshift logging documentation for more configuration options like log formating,filtering..etc.

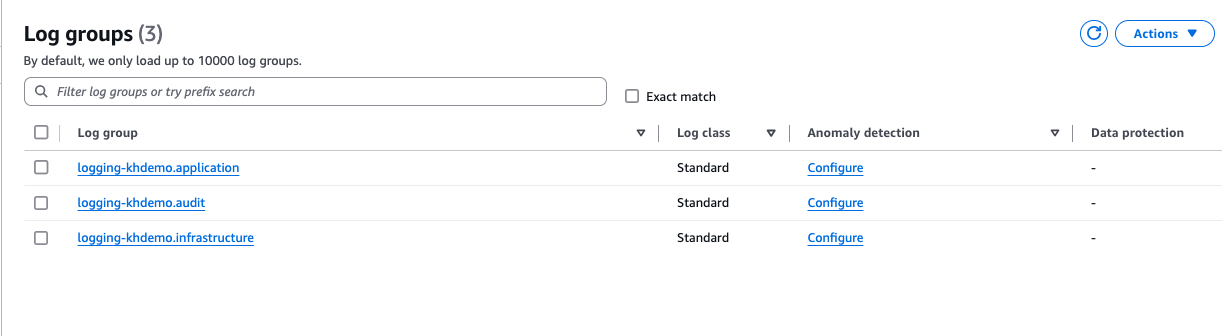

Verify CW log groups

Log visualization in openshift console

Visualization for logging is provided by deploying the Logging UI Plugin of the Cluster Observability Operator(COO). Follow detail instructions for Installing the Cluster Observability operator

Openshift project for COO

oc create ns  openshift-cluster-observability-operator

Create an OperatorGroup object for COO

oc create -f - <<EOF
apiVersion: operators.coreos.com/v1
kind: OperatorGroup
metadata:
  name: openshift-cluster-observability-operator
  namespace: openshift-cluster-observability-operator
spec:
  upgradeStrategy: Default
EOF

Create a Subscription object for the Cluster Oberservability Operator

oc create -f - <<EOF
apiVersion: operators.coreos.com/v1alpha1
kind: Subscription
metadata:
  name: cluster-observability-operator
  namespace: openshift-cluster-observability-operator
spec:
  channel: stable
  installPlanApproval: Automatic
  name: cluster-observability-operator
  source: redhat-operators
  sourceNamespace: openshift-marketplace
EOF

Verify the Cluster Oberservability Operator Installation

oc get csv -n openshift-cluster-observability-operator

Wait until the Cluster Observability Operator shows Succeeded

Create a Cluster Observability Operator Logging UI plugin CR

oc create -f - <<EOF
apiVersion: observability.openshift.io/v1alpha1
kind: UIPlugin
metadata:
  name: logging
spec:
  type: Logging
  logging:
    lokiStack:
      name: logging-loki
    logsLimit: 50
    timeout: 30s
EOF

Note: Make sure to provide correct lokiStack name configured above (i.e:logging-loki )

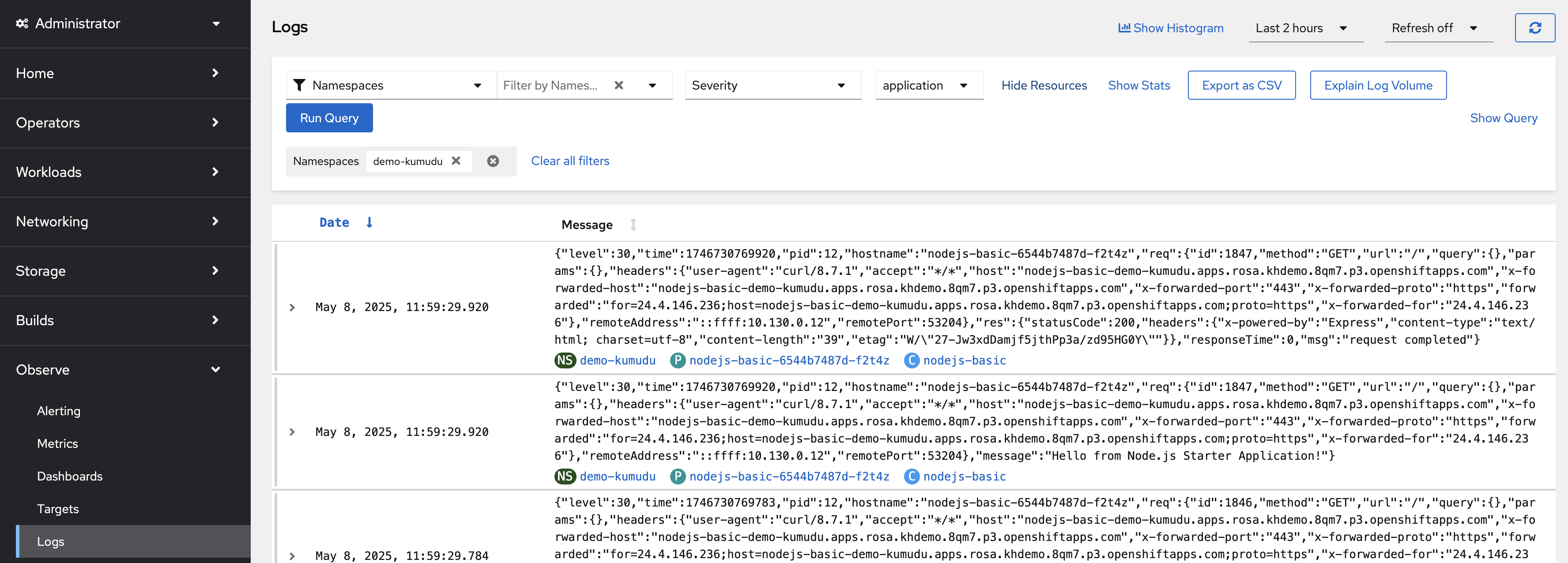

Verify Logging UI plugin Wait until you see the openshift web console refresh request. Once the console is refreshed, expand Observe in the left hand side of the openshift console and go to the log tab.

Cleanup

Remove COOC UIPlugin

oc delete UIPlugin logging -n openshift-cluster-observability-operator

Remove Cluster Observability Operator

oc delete subscription cluster-observability-operator -n openshift-cluster-observability-operator
oc delete csv cluster-observability-operator.v1.1.1 -n openshift-cluster-observability-operator

Remove the ClusterLogForwarder Instance:

oc -n openshift-logging delete clusterlogforwarder --all

Remove the LokiStack Instance:

oc -n openshift-logging delete lokistack --all

Remove the Cluster Logging Operator:

oc -n openshift-logging delete subscription cluster-logging
oc -n openshift-logging delete csv cluster-logging.v6.2.2

Remove the LokiStack Operator:

oc -n openshift-operators-redhat delete subscription loki-operator
oc -n openshift-operators-redhat delete csv loki-operator.v6.2.2

Cleanup your AWS Bucket

aws s3 rm s3://$LOKISTACK_BUCKET_NAME --recursive

Cleanup your AWS Policies and roles

aws iam detach-role-policy --role-name "${CLUSTER_NAME}-lokistack-access-role" --policy-arn ${POLICY_ARN_S3}
aws iam delete-role --role-name "${CLUSTER_NAME}-lokistack-access-role"
aws iam delete-policy --policy-arn ${POLICY_ARN_S3}

aws iam detach-role-policy --role-name "${CLUSTER_NAME}-ROSACloudWatch" --policy-arn ${POLICY_ARN_CW}
aws iam delete-role --role-name "${CLUSTER_NAME}-ROSACloudWatch"
aws iam delete-policy --policy-arn ${POLICY_ARN_CW}

Configuring OpenShift Logging 6 on ROSA HCP

Components of the Logging Subsystem

Prerequisites

Create environment variables

Install the Loki Operator

Install the OpenShift Cluster Logging Operator

Configuring log forwarding to cloudwatch

Prerequisites

Log visualization in openshift console

Cleanup

Interested in contributing to these docs?

Products

Tools

Try, buy & sell

Communicate

About Red Hat

Subscribe to our newsletter, Red Hat Shares

Red Hat legal and privacy links

Red Hat legal and privacy links
